DCVG Surveys for Buried Pipelines: What Operators Need to Know

Buried pipelines rely primarily on protective coatings and cathodic protection (CP) to control external corrosion. When coating defects or CP problems are suspected—or when an integrity programme requires periodic assessment—operators may use above-ground survey techniques to investigate the condition of the pipeline or as part of a Pipeline Direct Assessment process.

One commonly used technique is the Direct Current Voltage Gradient survey, usually shortened to DCVG.

DCVG in plain language

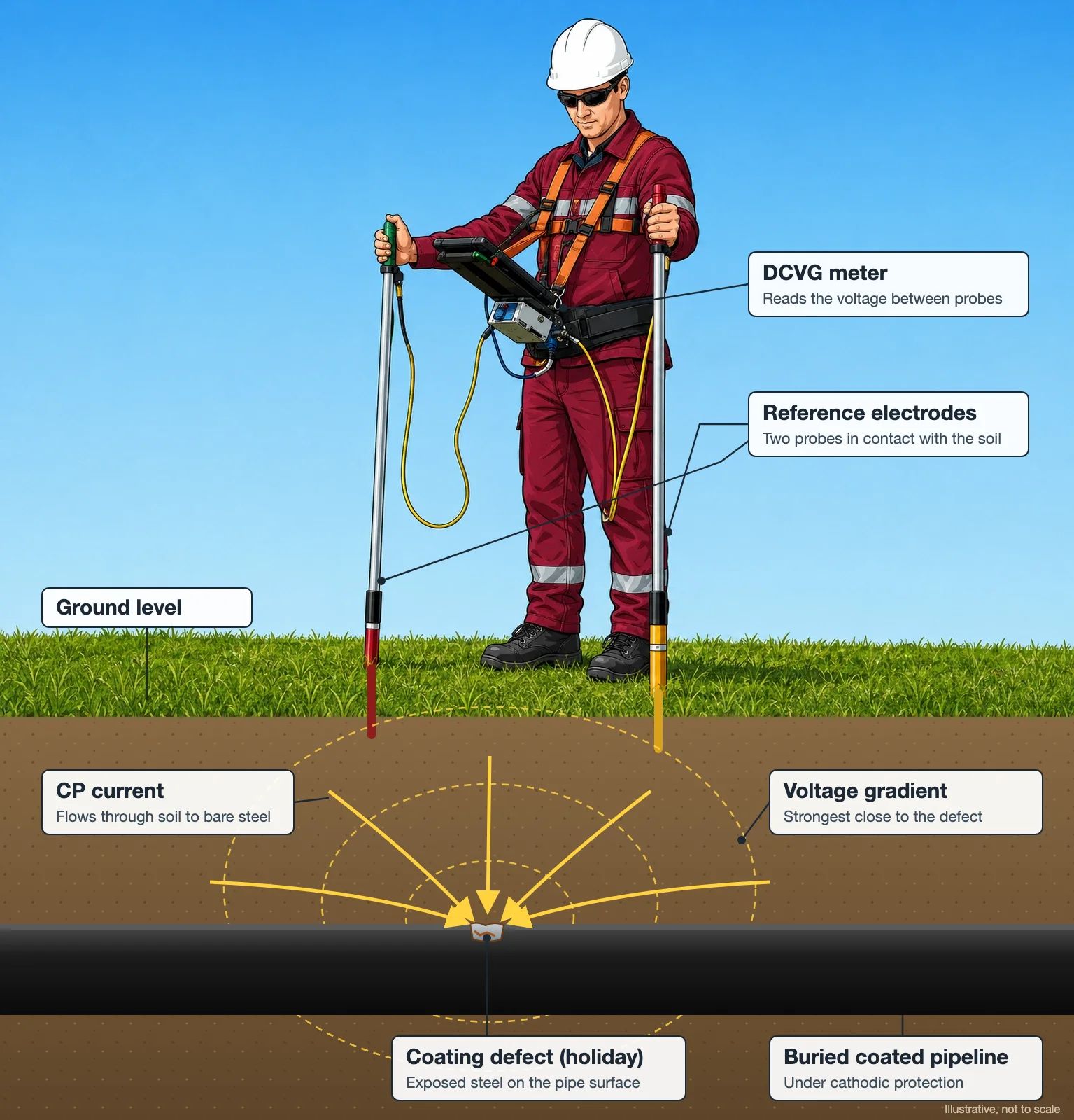

A DCVG survey is an above-ground technique used to locate and assess coating defects on buried pipelines.

During a conventional DCVG survey, cathodic-protection current is interrupted using a controlled on-and-off cycle. Where the pipeline coating is damaged, CP current flows through the surrounding soil to the exposed pipe surface. This creates a measurable voltage gradient in the ground.

Survey personnel traverse the pipeline route using two reference electrodes and a sensitive voltmeter. When an indication is detected, they establish its centre, record its location and polarity, and collect the measurements required by the approved survey procedure.

DCVG does not directly measure corrosion depth, remaining wall thickness or the physical dimensions of a coating defect. It also does not replace excavation, inline inspection or engineering judgement. Instead, it provides one source of information within a broader corrosion control and pipeline-integrity programme.

What operators typically hope to learn

Depending on the survey objectives and procedure, DCVG results may help operators:

• Locate indications associated with coating defects
• Determine the apparent direction of current flow at an indication
• Assess the relative electrical significance of coating-related indications
• Prioritise locations for excavation and direct examination
• Establish baseline coating-condition information
• Verify coating condition after construction or repair
• Investigate areas where CP performance may be affected by coating deterioration
• Correlate coating indications with CIPS, CP, inline-inspection and corrosion-monitoring data

DCVG indications may be graded using percentage IR or another classification system defined by the applicable specification or survey procedure. This grading can support prioritisation, but it should not be interpreted as a direct measurement of coating-defect area, metal loss or corrosion rate.

Results should be assessed by qualified corrosion or pipeline-integrity personnel familiar with the pipeline, its CP system, local soil conditions, possible interference sources and the limitations of the survey method.

When DCVG is commonly scheduled

Operators and integrity contractors may consider a DCVG survey when:

• A buried coated pipeline requires coating-condition assessment as part of an integrity-management programme
• CP performance or coating deterioration is suspected
• Post-construction or post-repair verification is required
• A periodic survey interval has become due
• CIPS, CP monitoring or another survey has identified areas requiring coating-focused investigation
• Excavation and repair programmes need better information for selecting and prioritising dig locations
• Baseline information is required for a new or recently commissioned pipeline

Not every pipeline section requires DCVG at the same frequency. Survey intervals should be based on risk, consequence of failure, coating type and age, CP history, previous survey findings, environmental conditions and the applicable company or regulatory requirements.

Routine information collected between detailed surveys may form part of a wider programme for corrosion monitoring of pipelines in Thailand.

How DCVG relates to cathodic protection

DCVG depends on a sufficiently strong and detectable DC current signal. The operation of the pipeline’s cathodic-protection system is therefore an important part of survey planning.

For a conventional DCVG survey, the relevant CP current sources are normally interrupted using an agreed cycle. Where several rectifiers influence the survey section, they should be synchronously interrupted so that they switch on and off at the same time.

Survey planning should also consider:

• Foreign CP systems
• Electrical bonds to other structures
• Parallel or crossing pipelines
• Sacrificial-anode systems
• Pipeline isolation arrangements
• Casings and other buried metallic structures
• Earthing systems and interference sources
• Locations where the pipeline may not be electrically continuous
• Operational or safety restrictions affecting interruption

Unsynchronised or unidentified current sources can distort voltage-gradient measurements and make the results difficult to interpret.

Coordination between CP technicians, pipeline operators and survey personnel is therefore essential. For broader information, see JST’s cathodic protection services.

What happens during the field survey?

Before starting the survey, the team should review the pipeline alignment, CP drawings, test-post locations, rectifier information, previous survey results, known crossings and other relevant integrity records.

During the fieldwork, survey personnel normally:

1. Confirm the agreed CP interruption cycle
2. Verify that the required current sources are switching correctly
3. Follow the pipeline alignment using drawings, markers and locating equipment
4. Measure soil voltage gradients using two reference electrodes
5. Identify the direction of the voltage gradient
6. Establish the centre of each significant indication
7. Record GPS coordinates, chainage, polarity and other required measurements
8. Classify the indication in accordance with the approved procedure
9. Document relevant site conditions, access restrictions and possible interference sources
10. Mark selected locations where excavation or further investigation may be required

The exact method, electrode spacing, interruption cycle and classification requirements should be defined in the project procedure or applicable specification.

Field conditions that affect data quality

Reliable DCVG results depend on more than having the correct instrument. Important factors include:

• Accurate pipeline alignment and chainage referencing
• Correct positioning and condition of the reference electrodes
• Sufficient electrical contact between the electrodes and the soil
• Synchronous interruption of influential CP sources
• Adequate CP current reaching the survey section
• Safe and continuous access to the pipeline right-of-way
• Soil moisture and soil resistivity
• Surface water/rivers or lakes
• Extremely dry, frozen, paved or highly resistive surfaces
• Deep pipeline burial
• Shielding from disbonded coatings or other materials
• Electrical interference from foreign structures
• Parallel pipelines and congested utility corridors
• Pipeline discontinuities, insulating joints and bonds
• Seasonal weather and groundwater conditions
• Accurate GPS, chainage, photographs and field notes

Small defects, deeply buried pipelines, dry or highly resistive soil, shielding and weak CP current may reduce survey sensitivity. Flooded, paved or inaccessible areas may also prevent conventional measurements from being obtained.

Clear field documentation is essential. Even carefully collected instrument readings have limited value if an indication cannot later be located accurately for excavation.

Fitting DCVG into an integrity workflow

A typical DCVG-based integrity workflow may include:

1. Define the survey objectives and required deliverables
2. Establish the applicable procedure and indication-classification criteria
3. Review pipeline, coating, CP and previous survey information
4. Identify all relevant CP sources, bonds and interference risks
5. Carry out the field survey under controlled conditions
6. Process, review and classify the recorded indications
7. Correlate the results with CIPS, CP, ILI and historical integrity information
8. Prioritise locations for excavation or further investigation
9. Perform direct examination at selected locations
10. Repair or replace damaged coating where required
11. Record the excavation findings and compare them with the survey results
12. Update the pipeline integrity and corrosion-control records
13. Use the findings to improve future inspection and monitoring plans

Defining why the survey is being performed is important. Collecting DCVG data without clear objectives, classification rules or a plan for using the results may provide little practical integrity benefit.

Where excavation leads to coating repair, the selected repair system should be compatible with the existing coating, pipeline operating conditions and project specification. Repair options may include appropriately specified heat-shrink sleeves for pipeline coating or other qualified systems supported by JST’s coating services.

Limitations that must be respected

DCVG is a valuable survey method, but its limitations should be understood:

• It indicates electrical voltage gradients associated with possible coating defects; it does not directly measure corrosion damage
• Percentage-IR or similar classifications represent relative electrical significance, not the physical percentage of coating area lost
• Not every indication requires immediate excavation
• A weak or unstable CP current signal may reduce detection reliability
• Unsynchronised current sources can distort the results
• Foreign structures, bonds, casings and parallel pipelines can complicate interpretation
• Deep burial, shielding, dry soil, paving and difficult terrain can reduce survey sensitivity
• Some areas may be physically inaccessible
• DCVG cannot determine remaining pipe-wall thickness
• It is not a substitute for inline inspection, ultrasonic examination or direct assessment
• Excavation and direct examination are normally required to confirm the actual coating and pipe condition

Survey scopes should clearly describe these capabilities and limitations rather than imply that every coating defect will necessarily be detected.

Frequently asked questions

Is DCVG the same as a CIPS survey?

No. A Close Interval Potential Survey, or CIPS, measures pipe-to-electrolyte potentials at close intervals along a pipeline. Its primary purpose is to assess the level and distribution of cathodic protection.

DCVG measures voltage gradients in the soil to locate and assess coating-related indications.

The two methods are frequently performed together because they provide complementary information: CIPS helps show how effectively the pipeline is being protected, while DCVG helps identify locations where coating defects may be influencing CP-current distribution.

Can DCVG replace inline inspection?

Generally, no. DCVG and inline inspection answer different integrity questions.

DCVG is an above-ground coating-survey technique. Inline-inspection tools may assess metal loss, geometry, cracking or other pipeline conditions, depending on the tool technology used.

Many integrity programmes combine above-ground surveys, inline inspection, CP monitoring, excavation and direct examination.

Does DCVG show the size of a coating defect?

Not directly. A stronger DCVG indication may represent a more electrically significant defect, but the measured signal is affected by several factors, including CP-current output, soil conditions, coating characteristics, pipeline depth and interference.

The physical size and condition of a coating defect can only be confirmed through excavation and direct examination.

Who should interpret DCVG results?

Results should be interpreted by qualified cathodic protection, corrosion or integrity personnel who understand:

• The DCVG survey method
• Cathodic-protection operation
• Pipeline coating systems
• Soil and environmental conditions
• Electrical interference
• Survey uncertainty
• The operator’s integrity-management requirements

Interpretation should not rely only on the field operator’s indication list without reviewing the wider pipeline and CP information.

Does every DCVG indication require immediate excavation?

No. Excavation priorities should be established using the operator’s approved assessment criteria.

Factors may include:

• Relative indication severity
• Indication polarity
• CIPS and CP results
• Pipeline coating type and age
• Previous survey history
• Inline-inspection results
• Location and consequence of failure
• Evidence of electrical interference
• Accessibility and excavation constraints
• Applicable regulations and company procedures

Some indications may require urgent investigation, while others may be monitored or included in a planned excavation programme.

Can DCVG be performed when the CP system cannot be interrupted?

Conventional DCVG normally requires a controlled and identifiable interrupted-current signal. If influential CP sources cannot be interrupted, the survey may be inconclusive or another survey technique may be more appropriate.

The survey contractor and the operator’s corrosion specialist should review the electrical configuration and select a suitable method before fieldwork begins.
