What are heat-shrink sleeves and how are they used in pipeline coating?

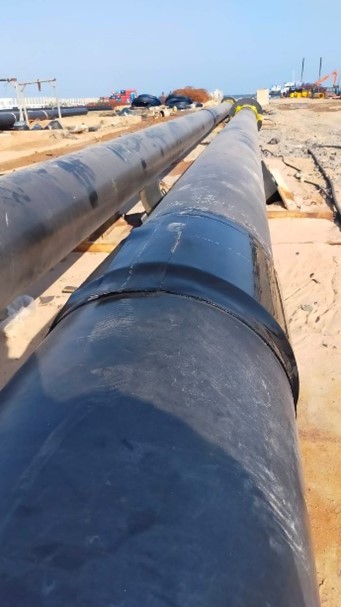

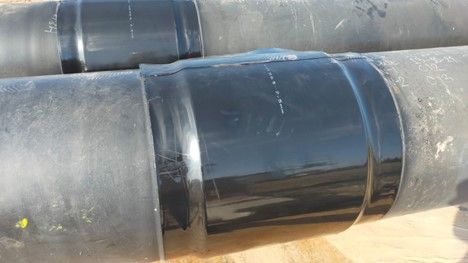

Steel pipelines are commonly factory-coated along the pipe body, but field joints—the circumferential zones at welds—still need corrosion protection after welding and inspection. Heat-shrink sleeves (HSS) are one widely used field-joint coating system: a sleeve material that shrinks tightly onto a prepared joint when heated, helping seal and protect that critical band.

Where heat-shrink sleeves typically sit in the coating system

A simplified pipeline coating story looks like this:

1. Pipe is coated in a plant for the main body
2. Joints are welded and inspected in the field (or on a yard spool)
3. The cutback area around the weld is cleaned and prepared
4. A field-joint coating—such as a heat-shrink sleeve system—is applied per the project specification
5. Quality checks confirm the joint is ready for backfill, lowering-in, or the next construction step

Sleeves are therefore a field-joint solution family—not a replacement for the mainline factory coating. JST’s heat-shrink capability sits inside a wider coating services toolkit.

Why field joints get special attention

The weld zone is where coating continuity is interrupted by construction. If surface preparation, preheat, sleeve selection, or installation technique is weak, that narrow band can become a preferred corrosion site later—especially if cathodic protection is also compromised. Integrity programmes and construction QA/QC therefore spend disproportionate attention on a relatively small surface area.

Above-ground survey methods such as DCVG are sometimes used later to help prioritise digs where coating condition is in question—feeding back into corrosion control and corrosion monitoring programmes.

What “using a heat-shrink sleeve” involves (high level)

Exact steps follow the manufacturer’s instructions and the project specification. In general terms, crews typically:

• Verify the sleeve type matches pipe diameter, operating conditions, and specification
• Prepare the steel and adjacent factory coating to the required cleanliness and profile
• Apply any required primer or epoxy components in the system
• Position the sleeve correctly over the joint
• Apply heat in a controlled pattern so the sleeve shrinks uniformly and adhesives flow as designed
• Inspect the finished joint (visual criteria, holiday detection where specified, dimensional checks)

Skipping preparation to “save time” is a common root cause of later coating failures.

Factors that influence sleeve selection

Project engineers—not brochure headlines—decide the system. Typical inputs include:

• Pipe diameter and cutback geometry
• Design temperature and operating profile
• Soil and installation stresses (including rocky backfill or directional drilling constraints where relevant)
• Compatibility with the factory coating
• Client specification and applicable standards referenced by the project
• Application environment (yard vs right-of-way, weather controls)

Vendors and applicators should explain compatibility and limitations without inventing performance guarantees beyond tested scopes.

Quality and HSE discipline on site

Successful sleeve work is craft plus controls:

• Trained applicators and documented procedures
• Calibrated equipment where the specification requires it
• Weather and contamination controls
• Safe heating practices and fire/flame controls appropriate to the method
• Traceability: which joint, which batch, which inspector sign-off
• Coordination with welding and NDE schedules so coating does not race unfinished inspection

Coating is part of construction critical path; treat it that way in planning meetings.

How sleeves relate to other coating and repair options

Heat-shrink systems sit among a wider toolkit that may include tapes, liquid coatings, visco-elastic systems, and repair products for in-service lines—each with different indications. Selection is engineering-led. Match method to scenario rather than forcing one product family onto every joint. Where CP performance and coating condition interact, coordinate with cathodic protection support.

Common field problems (and prevention themes)

• Inadequate surface preparation → invest time up front
• Uneven heating → follow qualified heating patterns; avoid scorched or cold spots
• Wrong sleeve for the service → confirm specification before mobilisation
• Poor cutback feathering/overlap detailing → train and inspect
• Backfill damage after application → protect freshly coated joints as required

Prevention is cheaper than excavation later.

FAQ

Are heat-shrink sleeves only for new construction?

They are common on new build and spool fabrication field joints. In-service repair may use other systems depending on access and condition. Follow the integrity/repair specification.

Can any crew install any sleeve?

No. Applicators should be trained on the specific system and project procedure. Product familiarity matters.

Do sleeves replace cathodic protection?

No. Coating and CP are complementary layers in many buried pipeline designs. Coating defects still interact with CP performance.

What should clients ask applicators before award?

Ask about procedure qualification, crew experience on similar diameters, inspection hold points, weather contingency, and how non-conformances are dispositioned.
